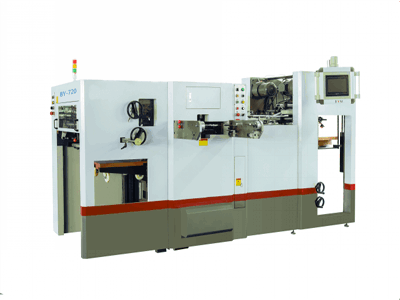

BY-720/800 Automatic Die-Cutting And Creasing Machine

ModelBY-720 BY-800
Max. paper size720*520 mm800*620 mm
Min. paper size320*210 mm310*250 mm
Max. CuttingSize710*510 mm790*610 mm
Precision±0.1mm±0.1mm
Max. Speed7500 S/H8000S/H
Max. Pressure200 T200 T
Net Weight7000 kg9000 kg
Thickness of PaperCardboard 0.1-1.5mmflute≤4mm
100-1000 gsmcorrugated: E&F flute

Cardboard 0.1-1.5mm
flute≤4mm

Total Power10 KW15 KW
Overall Dimension3500*2200*1850 mm 4000*2380*1820 mm
BY-720/800 Automatic Die-Cutting And Creasing Machine

BY-720/800 Automatic Die-Cutting And Creasing Machine

Technicial Specifications:

BY-720 automatic die-cutting and creasing machine is mainly used for the die-cutting, creasing, cold embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.
This kind of machine is incorporated with fully automatic feeding, die-cutting, delivering counting, obstacle indicating, checking and measuring. It has the features of easy operating, reliablity, high speed and precision.
