| Model | BMY-1500 |
|---|---|
| Die cutting style | flat to flat |
| Max. paper size | 1510mm×1100mm |
| Min. paper size | 550mm×550mm |
| Max. Die-cutting size | 1500mm×1100mm |
| Max. Die-cutting pressure | 350T |
| Paper processed | 1—9mm |
| Max. Die-cutting Speed | 4500sheets/h |
| Max. Feeding Pile Height | 1400mm |
| Max. Delivery Pile Height | 1200mm |
| Main Motor Power | 11KW |
| Total Power | 17KW |
| Weight | 17.8T |
| Dimensions | 6300mm×4500mm×2500mm |

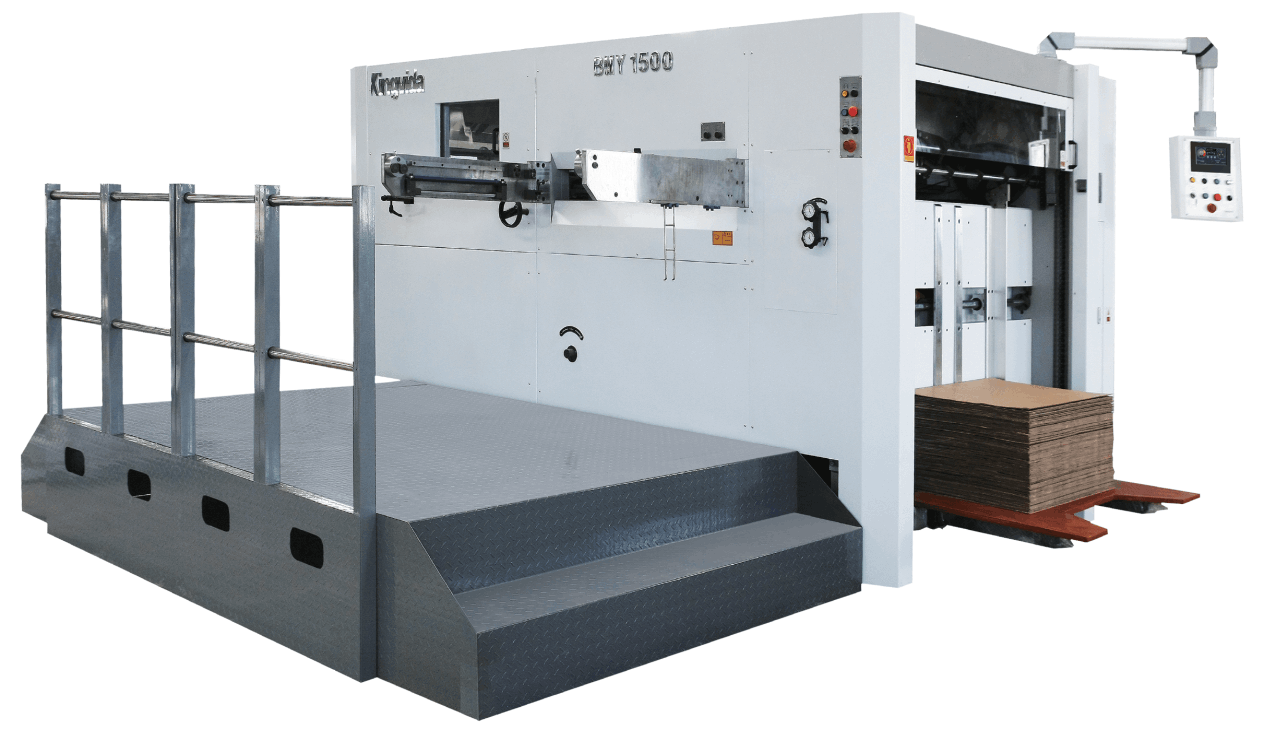

BMY1500 is a special equipment applying to die cutting of advanced colorful boxes and cartons. The machine combines several advantages over many other die cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man- machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step less speed variation. The machine has a lot of sensors and safety-ensuring devices to guarantee the safety of operator and the environment. Frontal and back pressure can be adjusted separately. It is convenient to stop the machine by hand. It can also realize die cutting without clipper margin.
